STOCK PRODUCT
Rockwell All Product List
| S/N | Series | Cat No | Technical Specification | Product Picture |
|---|---|---|---|---|
| 1 | Micro870 | 2080‐L70E‐24QBBK | The 2080-L70E-24QBBK programmable controller is an Allen-Bradley/Rockwell Automation Micro870 series programmable controller. It has 14 inputs rated at 24 Volts AC/DC and 10 outputs rated at 24 Volts DC. The 2080-L70E-24QBBK programmable controller can also host up to 8 expansion modules if it needs additional I/O. |  |
| 2 | Micro850 | 2080‐L50E‐24QBB | Allen-Bradley 2080-L50E-24QBB Micro850 EtherNet/IP Controller, 14 24 VDC/VAC Inputs, 10 Source Output, 24 DC Input Power Number of Inputs: 14 Number of Outputs: 10 Product Type: Simple Signal Range: 24 VAC/VDC Input Signal, 24 VDC Source Output |  |
| 3 | Micro850 | 2080‐L50E‐48QBB | Micro850 EtherNet/IP Controller, 28 Digital Input - 24V DC/AC, 20 Digital Output Source, 24V DC Input Power, Up to 6 HSC channels, Embedded USB Programming Port, Ethernet Port and Non-Isolated RS232/485 Serial Port, 5 Plug-In Ports, 8 Ethernet Ports. |  |
| 4 | Micro800 | 2080‐IQ4 | Digital Input, 4 Points, 12/24VDC,These digital plug-in modules provide transistor outputs for switching a variety of 12/24V DC voltages to field loads and for detecting 12/24V signals from field devices. |  |
| 5 | Micro800 | 2080‐IQ4OB4 | 8 POINT DIGITAL COMBO (SOURCE) Micro800 System, 8-pt Combo, 4-pt Digital Input, 12/24V DC,Sink/Source, IEC3, and 4-pt Digital Output, 12/24V DC, Source |  |
| 6 | Micro800 | 2080‐IF4 | Analog Input Plug-In Module, Number Of Channels: 4 (Non-Isolated), Input: Input Voltage: 0 - 10 V, Power Consumption: Less Than 60 MA At 3.3 V, Current Rating: Input Current Range: 0 - 20 MA, Enclosure: IP20, Connection Cables: 26 - 16 AWG Solid, 26 - 18 AWG Stranded | |
| 7 | Micro-800 | 2080‐OF2 | Analog Output Plug-In Module, Number Of Channels: 2 (Non-Isolated), Output: Output Voltage: 0 - 10 V, Power Consumption: Less Than 60 MA At 24 V, Current Rating: Output Current Range: 0 - 20 MA, Enclosure: IP20, Connection Cables: 26 - 16 | |
| 8 | Micro800 | 2080‐SERIALISOL | Micro800 Isolated Serial Port Plug-In Micro830. Communications. Plug-in Module. RS-232/485. Isolated Serial port Depth 20 mm Explosion safety category for gas None Height 62 mm Number of HW-interfaces RS-232 6 |  |
| 9 | Micro800 | 2085‐IM8 | Micro800 Input Module, Digital, 8 Point, 240 VAC Digital Input Range 159 ... 240V AC Type, Digital Input 240V AC type Operating Temperature, Max 65 °C max Operating Temperature, Min -20 °C min Storage Temperature, Max 85 °C max |  |
| 10 | Micro800 | 2085‐OA8 | Micro800 8 Point Triac Output Module 8 Dimensions HxWxD 28 x 90 x 87 mm Shipping weight, approx. 140 g (4.93 oz) Input/output circuit type 120V AC input 240V AC input 120V/240V AC output |  |
| 11 | Micro800 | 2085‐IQ16 | Micro800 16 Point Digital Input Module Dimensions HxWxD44.5 x 90 x 87 mm Input circuit type 24V AC/DC sink/source Power supply 24V DC Bus current draw, max 170 mA @ 5V DC 190 mA @ 5V DC |  |
| 12 | Micro800 | 2085‐OB16 | Output Module, Digital, 16 Point, 12/24V. Micro800. Digital output module. 16 point. 12/24V DC. Source Number of digital inputs 0 Number of digital outputs 16Permitted voltage at output 12...24 VShort-circuit protection, outputs available no Type of digital output Transistor |  |

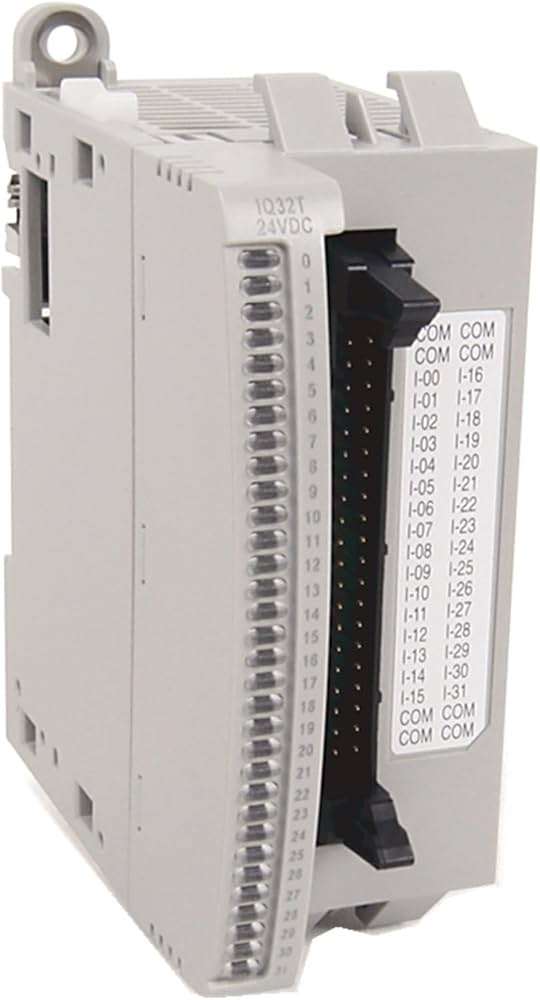

| 13 | Micro800 | 2085-IQ32T | Micro800 System, Micro850 Input Module, Digital, 32 Point, 12/24VDC, Sink/Source , IEC.Depth 87 mm Height 44.5 mm Number of digital inputs 32Number of digital outputs 0 Permitted voltage at input 12...24 V Short-circuit protection, outputs available noType of digital output Transistor |  |

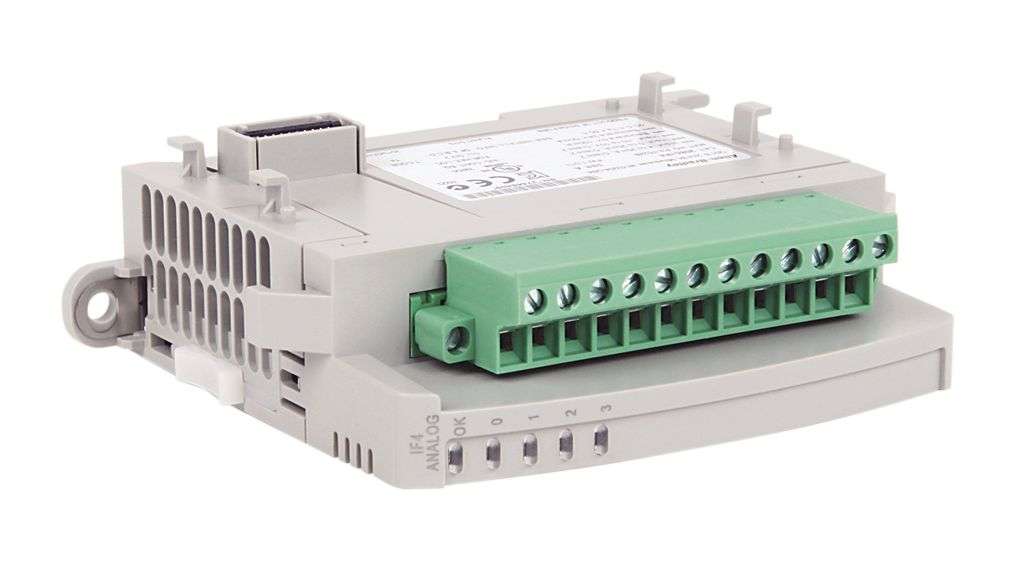

| 14 | Micro800 | 2085-IF4 | Micro800 Input Module, Analog, Voltage/Current, 4 Channels, Bipolar, + 10V, 0 - 20mA Depth:87mm Height:90mmWidth:28mm LED Input:4 Point, ±10V, 0-20mA Mounting:DIN Rail, Micro800Temperature Rating:-20...65 °C (-4...149 °F) | |
| 15 | Micro-800 | 2085-IF8 | Micro800 Input Module, Analog, Voltage/Current, 8 Channels, Bipolar, + 10V, 0 - 20mA Depth:87mm Height:90mm Width:28mm LED Input:4 Point, ±10V, 0-20mA Mounting:DIN Rail, Micro800Temperature Rating:-20...65 °C (-4...149 °F) | |
| 16 | Micro800 | 2085-0f4 | Micro800 Output Module, Analog, Voltage/Current, 4 Channels, Bipolar, + 10V, 0 20mA Depth:87mm Height: 90mm Width:28mm Enclosure:IP20 Output: 4 Point, +-10V, 0-20mA Type: Analog, Output |  |
| 17 | Micro800 | 2085‐EP24VDC | Micro800 expansion module power supply, 24VDC to 24VDC/5VDC, 2085 backplane |  |
Instument All Product List
| S/N | Band & Origin | Series | Part No | Technical Specification | Product Picture |
|---|---|---|---|---|---|
| 1 | SIEMENS | QFA | S55720-S462 | Operating voltage AC 24 V or DC 13.5…35 V Signal output DC 0...10 V / 4…20 mA for temperature and relative humidity Capacitive humidity measurement Accuracy of ±3 % r.h. within comfort range Range of use -15…+50 °C / 0…95 % r.h. (non-condensing) |  |

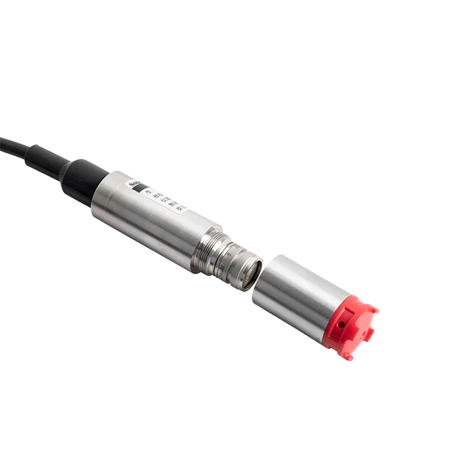

| 2 | SUPMEA | SUP-P300 | RANGE:0-10BAR | SUP-P300 RANGE:0-10BAR is a piezoresistive pressure sensor with compact design and stainless steel body SS304 and SS316L diaphragm, can work in the non-causticity environment, with 4-20mA signal output. P300 series is widely applied in pressure measurement for aviation, HVAC etc. |  |
| 3 | RIELS | "PRESSURE TRANSMITER" | RIB100-F8C | "Informations measured Pressure Pressure range 0...10 barG All signal outputs available 4...20 mA, 0...10 Vdc, 0...5 Vdc Supply Dc 12….36v Output details 1 x Analog 0…10 Vdc ELECTRICAL DATA" |  |
| 4 | SUPMEA | SUP P260 | RANGE:0-6M | "LEVEL TRANSMITTER Range: 0~0.5m…6m Accuracy: 0.5% F.S Output signal: 4~20mA; 0~10V; 0~5V Power supply: 24VDC; 12VDC " |  |
| 5 | SIEMENS | "Differential Pressure Switch" | QBM 81 | "Differential pressure switch for monitoring air pressure in HVAC systems. Type of switch Single-pole change-over, multi-layer contactContact rating 24 V dc Maximum 5 A resistive Maximum 3 A inductive, cos ϕ >0.6 " |  |
| 6 | SIEMENS | QBM 2030 | S55720-S244 | QBM2030-1U - Differential pressure sensor, -50...50 Pa, -100...100 Pa, 0...100 Pa |  |
| 7 | TPC | "PRESSURE SWITCH" | SPS210-01 | "SPS210-01 Pressure Switch 15-150PSI, Tpc Pneumatic " |  |
| 8 | AUTONICS | "TEMPERATURE CONTROLLER" | TCN4S-24R | "Display method : 4-digit 7-segment LEDControl method : ON/OFF, P, PI, PD, PIDInput specification : Thermocouple: Cu50ΩSampling cycle : 100msControl output : Relay(250VAC~ 3A) or SSR drive(12VDC ) [ON/OFF] Power supply : 100-240VAC~ 50/60Hz" |  |
| 9 | HANYOUNG | "FLOATLESS LEVEL SWITCH " | FS-3A | "Compact plug-in (8-pin) level controller for single or 2-point level control of conductive materials, liquid or solid. Detection method: conductivity Low-voltage electrodes (8VAC or 24VAC) Probes are sold separately " |  |
| 10 | OMRON | CS1 | CS1W-ID211 | "PLC Controllers In CS1DC24V 16pt 7ma Manufacturer: Omron Product Category: PLC Controllers Brand: Omron Automation and Safety Product Type: PLC Controllers" |  |
| 11 | BANNER | SL10 | SL10VB6VY | "Slot Sensor, Slot width: 10 mm; Input: 10-30 V dc, Output: Bipolar: 1 NPN; 1 PNP, 2 m (6.5 ft) Cable" |  |
| 12 | VALCOM | F4 SERIES | 1-12BAR | "Working temperature: -25°C ÷ +85°C Switching frequency: 90 cycles/min Setting point: adjustable using internal screw Switching accuracy: ± 4% of the end of scale at 20°C Fixed hysteresis value: - membrane execution ~ 10% of end of scale at 20°C" | |
| 13 | VALCOM | " Head Mounted TT" | "SUPPLY VOLTAGE:12-30v DC OUTPUT: 4-20mA CAL:0-200°C" |  | |

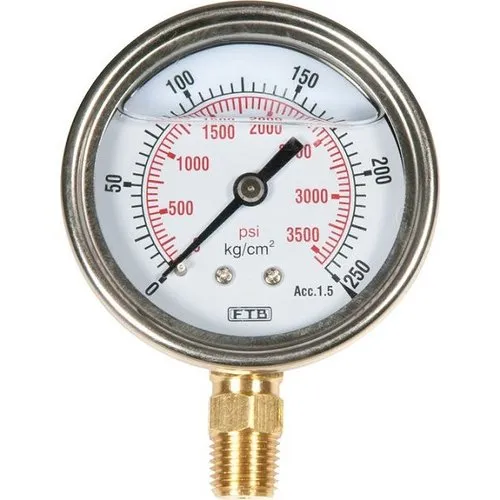

| 14 | -- | Pressure Gauge | 0-7Bar |  | |
| 15 | SP200 | Pressure Gauge | 0-10Bar |  | |
| 16 | VALCOM | SP200 | Pressure Gauge | 0-20Bar |  |
| 17 | VALCOM | SP200 | Pressure Gauge | 0-25Bar | |
| 18 | VALCOM | SP200 | Pressure Gauge | 0-40Bar | |
| 19 | VALCOM | SP200 | Pressure Gauge | 0-100Bar | |
| 20 | VALCOM | BT | Bimetal Thermometer | 0-100°C | |
| 21 | VALCOM | BT | Bimetal Thermometer | 0-200°C | |
| 22 | WIKA | Thermometer | 0-200°C | ||
| 23 | VALCOM | RTD | Pt100 | 0-200°C |  |
| 24 | VALCOM | SSR-1A | Q5-3100-0000 | "SUPPLY VOLTAGE:100-240v AC OUTPUT: 4-20mA CAL:0/100%" | |
| 25 | HONEYWELL | UDC1200 | "SUPPLY VOLTAGE:100-240v AC 50/60Hz 7.5VA REISISTIVE 120-240V AC ALL O/P RELAY CONTACTS 2A" |  | |
| 26 | VALCOM | J5 LINE | J5-3700-0800 | "SUPPLY VOLTAGE:100-240v AC OUTPUT: RELAY CAL:0/100%" | |
| 27 | ROTA | RAMC01-D4SS-53L1 | "Air 29716 Kg 0,021 mPas 80°C 2br g" |  | |
| 28 | VALCOM | VB1D11C06A01A01A01N00 | "SUPPLY :6Bar OUTPUT: 4-20mA CAL:Aria Apre" |  | |

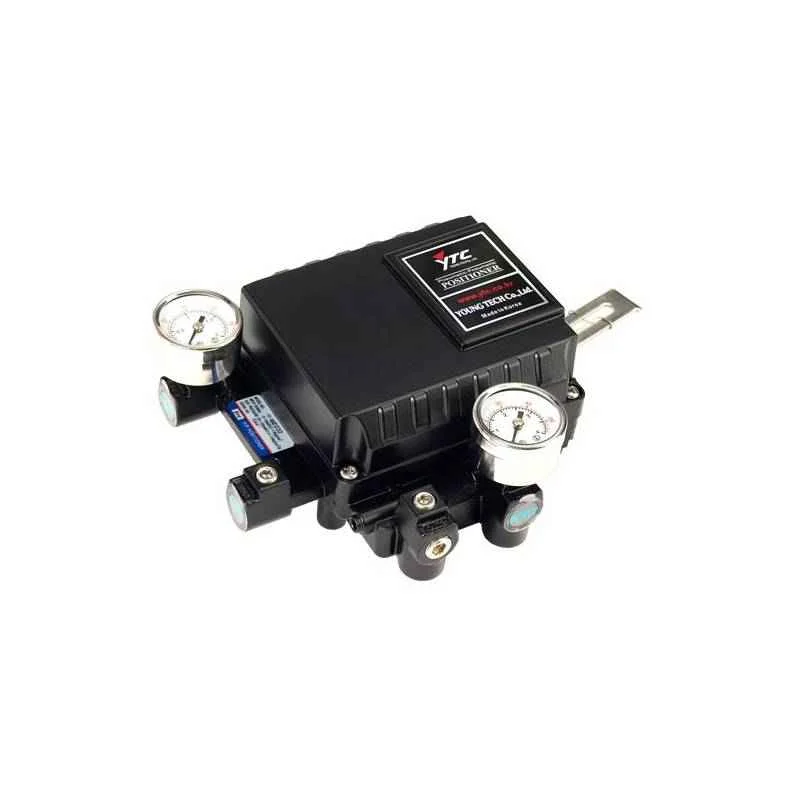

| 29 | YTC | YT-1000 | YT-1000 LSn132S0 | "EXPLOSION PROOF:NON EXPLOSION INPUT SIGNAL: 4-20mA Dc AMBIENT TEMP.:-20 TO 70°C SUPPLY PRESSURE :0.14-0.7MPA" |  |
| 30 | RIELS | "DN25 PN25" |  |
Siemens All Product List
| S/N | Series | Part No | Technical Specification | Product Picture |
|---|---|---|---|---|
| 1 | SIEMENS - LOGO! | 6EP1332-1SH42 | " LOGO!POWER 24 V / 2.5 A stabilized power supply input: 100-240 V AC output: 24 V DC/ 2.5 A type of the power supply network 1-phase AC or DC voltage curve at output Controlled, isolated DC voltage output voltage at DC rated value 24 V " |  |
| 2 | SIEMENS - LOGO! | 6ED1057-1AA01-0BA0 | ** Spare part *** LOGO! USB PC cable for transfer of programs from PC to LOGO! and vice versa Driver on CD-ROM enclosed length 2 m |  |
| 3 | SIEMENS - LOGO! | 6EDL055-4MH00-0BA0 | * Spare part *** LOGO! TD text display, for LOGO!..0BA6 and..0BA7, 4-row, with cable (2.5 m) and installation accessories, configuration with LOGO! SOFT Comfort V6.0 |  |
| 4 | SIEMENS - LOGO! | 6ED1052-2MD00-0BA5 | LOGO! 12/24RCO, LOGIC MODULE PU/I/O: 12/24V DC/RELAY, 8 DI (2AI)/4 DO; W/O DISPLAY, MEMORY 130 BLOCKS, EXPANDABLE WITH EXTRA MODULES |  |

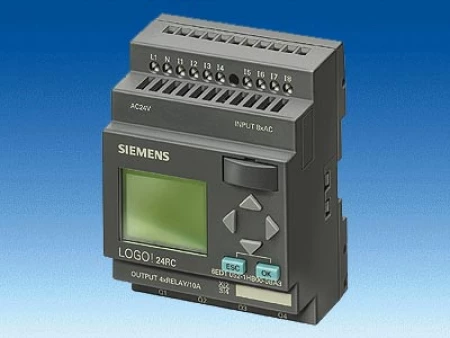

| 5 | SIEMENS - LOGO! | 6ED1052-1HB00-0BA3 | LOGO! 24RCE, logic module,Display PS/I/O: 24V AC/DC 24V/relay, 8 DI/4 DO, memory 400 blocks modular expandable, Ethernet integr. web server, data log, standard microSD card for LOGO! SOFT Comfort V8 or higher older projects executable |  |
| 6 | SIEMENS - LOGO! | "Controll Pannel Box with surge protector Our Proposal: " | *** spare part *** LOGO! 24CEo, logic module, without display, PS/I/O: 24 V/24 V/24 V trans., 8 DI (4 AI)/4 DO, memory 400 blocks, modularly expandable, Ethernet, integr. web server, data log, user-defined web pages, standard microSD card for LOGO! Soft Comfort V8 or higher, older projects executable |  |
| 7 | SIEMENS - LOGO! | 6ED1055-1MM00-0BA2 | "LOGO! AM2 AQ expansion module, PS: 24 V DC, 2 AO, 0-10 V, 0/4-20 mA for LOGO! 8 Width 35.5 mm Height 90 mm Depth 58 mm Mounting on 35 mm DIN rail, 2 spacing units wide" |  |
| 8 | SIEMENS - LOGO! | 6ED1055-1MD00-0BA2 | " LOGO! AM2 RTD expansion module, PS: 12/24 V DC, 2AI-50...+200°/C Pt100/1000 for LOGO! 8 Mounting on 35 mm DIN rail, 2 spacing units wide Width 35.5 mm Height 90 mm Depth 58 mm" | |

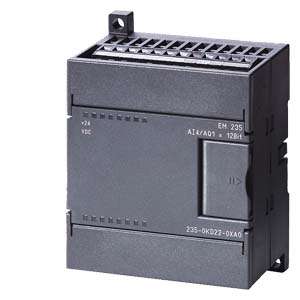

| 9 | S7-200 | 6ES7 235-0KD22-0XA0 | *Spare part*** SIMATIC S7-200, analog I/O EM 235, 6ES7235-0KD22-0XA0 only for S7-22X CPU, 4 AI, +/-10 V DC; 1 AO, +/-10 V DC 12 bit converter |  |
| 10 | S7-200 | 6ES7 212-1AB22-0XB0 | *** SPARE PART*** SIMATIC S7-200, CPU 222 COMPACT UNIT, DC POWER SUPPLY 8 DI DC/6 DO DC 4 KB CODE/2 KB DATA, PROFIBUS DP EXTENDABLE |  |
| 11 | S7-200 | " 6ES7 212-1AB22-0XB0 " | *** SPARE PART*** SIMATIC S7-200, CPU 222 COMPACT UNIT, DC POWER SUPPLY 8 DI DC/6 DO DC 4 KB CODE/2 KB DATA, PROFIBUS DP EXTENDABLE |  |

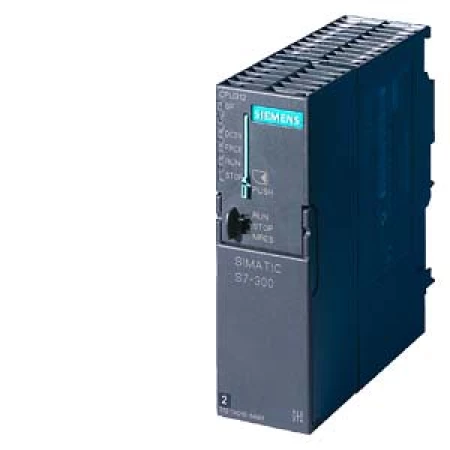

| 12 | S7-300 | 6ES7 312-1AE14-0AB0 | "SIMATIC S7-300, CPU 312 Central processing unit with MPI, Integr. power supply 24 V DC, Work memory 32 KB, Micro Memory Card required Rated value (DC) 24 V Width 40 mm Height 125 mm Depth 130 mm" |  |

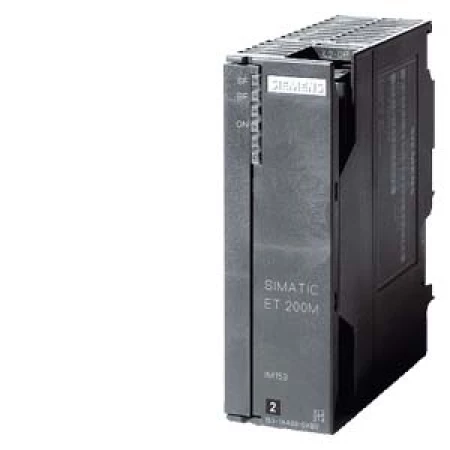

| 13 | S7-300 | 6ES7 153-1AA03-0XB0 | "SIMATIC DP, Connection IM 153-1, for ET 200M, for max. 8 S7-300 modules Rated value (DC) 24 V permissible range, lower limit (DC) 20.4 V Width 40 mm Height 125 mm Depth 117 mm" |  |
| 14 | S7-1200 | 6ES7 211-1BE40-0XB0 | SIMATIC S7-1200, CPU 1211C, compact CPU, AC/DC/relay, onboard I/O: 6 DI 24 V DC; 4 DO relay 2 A; 2 AI 0-10 V DC, power supply: AC 85-264 V AC at 47-63 Hz, program/data memory 75 KB |  |
| 15 | S7-1200 | 6ES7 211-1BE31-0XB0 | SIMATIC S7-1200, CPU 1211C, compact CPU, AC/DC/relay, onboard I/O: 6 DI 24 V DC; 4 DO relay 2A; 2 AI 0-10 V DC, Power supply: AC 85-264 V AC at 47-63 Hz, Program/data memory 30 KB |  |
| 16 | S7-1200 | 6ES7 212-1AE40-0XB0 | SIMATIC S7-1200, CPU 1212C, compact CPU, DC/DC/DC, onboard I/O: 8 DI 24 V DC; 6 DO 24 V DC; 2 AI 0-10 V DC, power supply: DC 20.4-28.8 V DC, program/data memory 100 KB |  |
| 17 | S7-1200 | 6ES7 214-1AG40-0XB0 | SIMATIC S7-1200, CPU 1214C, compact CPU, DC/DC/DC, onboard I/O: 14 DI 24 V DC; 10 DO 24 V DC; 2 AI 0-10 V DC, power supply: DC 20.4-28.8 V DC, program/data memory 150 KB | |
| 18 | S7-1200 | " 6ES7215-1AG40-0XB0" | SIMATIC S7-1200, CPU 1215C, compact CPU, DC/DC/DC, 2 PROFINET ports, onboard I/O: 14 DI 24 V DC; 10 DO 24 V DC; 0.5 A; 2 AI 0-10 V DC, 2 AO 0-20 mA DC, power supply: DC 20.4-28.8 V DC, program/data memory 200 KB |  |
| 19 | S7-1200 | 6ES7 221-3BD30-OXB0 | "SIMATIC S7-1200, Digital input SB 1221, 4 DI, 24 V DC 200 kHz, Sourcing input from backplane bus 5 V DC, typ. 40 mA Power loss, typ. 1 W Width 38 mmHeight 62 mm Depth 21 mm " |  |

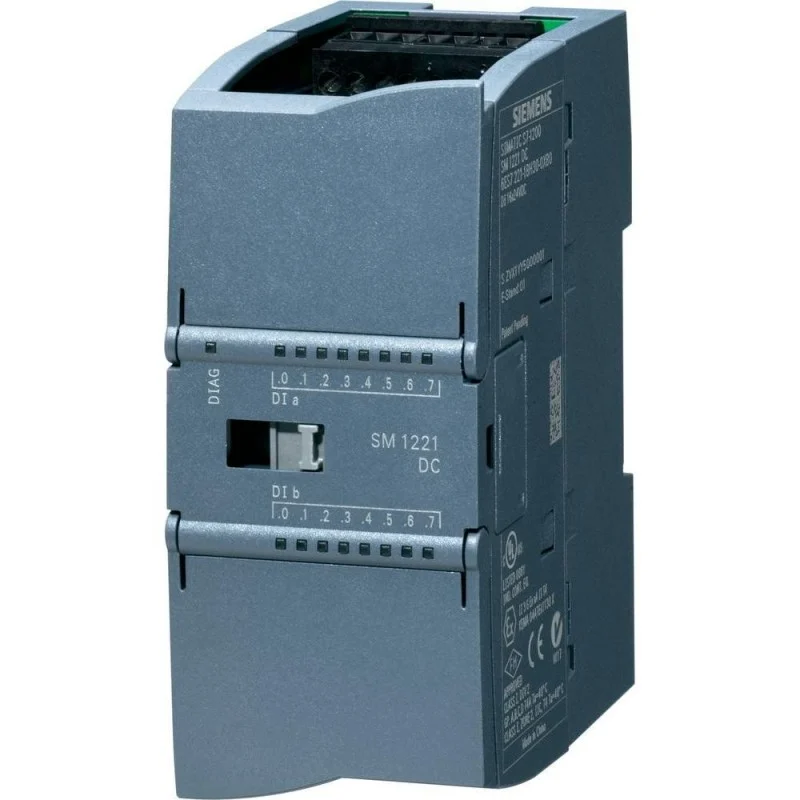

| 20 | S7-1200 | 6ES7 221-1BF32-OXB0 | "SIMATIC S7-1200, Digital input SM 1221, 8 DI, 24 V DC, Sink/Source Rated value (DC) 24 V permissible range, lower limit (DC) 20.4 V permissible range, upper limit (DC) 28.8 V Width 45 mmHeight 100 mm Depth 75 mm " |  |
| 21 | S7-1200 | 6ES7 221-1BH32-OXB0 | "SIMATIC S7-1200, Digital input SM 1221, 16 DI, 24 V DC, Sink/Source Rated value (DC) 24 Vpermissible range, lower limit (DC) 20.4 V permissible range, upper limit (DC) 28.8 V Width 45 mm Height 100 mm Depth 75 mm " | |
| 22 | S7-1200 | 6ES7 222-1BD30-OXB0 | "SIMATIC S7-1200, Digital output SB 1222, 4 DQ, 24 V DC 200 kHz from backplane bus 5 V DC, typ. 35 mA Power loss, typ. 0.5 W Width 38 mmHeight 62 mm Depth 21 mm" |  |
| 23 | S7-1200 | 6ES7 222-1BF32-0XB0 | "SIMATIC S7-1200, Digital output SM 1222, 8 DO, 24 V DC, transistor 0.5 A permissible range, lower limit (DC) 20.4 V permissible range, upper limit (DC) 28.8 V Width 45 mmHeight 100 mm Depth 75 mm" |  |
| 24 | S7-1200 | 6ES7 222-1HF32-OXB0 | "SIMATIC S7-1200, Digital output SM 1222, 8 DO, relay 2 A permissible range, lower limit (DC) 20.4 V permissible range, upper limit (DC) 28.8 V Dimensions Width 45 mm Height 100 mm Depth 75 mm" |  |
| 25 | S7-1200 | 6ES7 223-1PH32-0XB0 | "SIMATIC S7-1200, Digital I/O SM 1223, 8 DI/8 DO, 8 DI 24 V DC, Sink/Source, 8 DO, relay 2 A Rated value (DC) 24 V permissible range, lower limit (DC) 20.4 V Width 45 mm Height 100 mm Depth 75 mm " | |
| 26 | S7-1200 | 6ES7 223-1BL32-0XB0 | "SIMATIC S7-1200, Digital I/O SM 1223, 16 DI/16 DO, 16 DI 24 V DC, Sink/Source, 16 DO, transistor 0.5 A Rated value (DC) 24 V permissible range, lower limit (DC) 20.4 V Width 70 mm Height 100 mm Depth 75 mm " |  |
| 27 | S7-1200 | 6ES7 223-1PL32-OXB0 | SIMATIC S7-1200, Digital I/O SM 1223, 16 DI/16 DO, 16 DI 24 V DC, Sink/Source, 16 DO, relay 2 A transistor 0.5 A Rated value (DC) 24 V permissible range, lower limit (DC) 20.4 V Width 70 mm Height 100 mm Depth 75 mm |  |
| 28 | S7-1200 | 6ES7 231-4HD32-OXB0 | "SIMATIC S7-1200, Analog input, SM 1231, 4 AI, +/-10 V, +/-5 V, +/-2.5 V, or 0-20 mA/4-20 mA, 12 bit+sign (13 bit ADC) Rated value (DC) 24 V Current consumption, typ. 45 mA from backplane bus 5 V DC, typ. 80 mA Width 45 mm Height 100 mm Depth 75 mm" |  |
| 29 | S7-1200 | 6ES7 231-4HF32-0XB0 | SIMATIC S7-1200, Analog input, SM 1231, 8 AI, +/-10 V, +/-5 V, +/-2.5 V, or 0-20 mA/4-20 mA, 12 bit+sign or (13 bit ADC)Current consumption, typ. 60 mA from backplane bus 5 V DC, typ. 90 mA Width 45 mm Height 100 mm Depth 75 mm |  |
| 30 | S7-1200 | 6ES7 231-5PF32-OXB0 | "SIMATIC S7-1200, Analog input, SM 1231 RTD, 8xAI RTD module Supply voltage Rated value (DC) 24 V Input current Current consumption, typ. 40 mA from backplane bus 5 V DC, typ. 80 mA Width 45 mm Height 100 mm Depth 75 mm" |  |
| 31 | S7-1200 | 6ES7 231-5PD32-OXB0 | SIMATIC S7-1200, Analog input, SM 1231 RTD, 4xAI RTD module Rated value (DC) 24 V Current consumption, typ. 40 mA from backplane bus 5 V DC, typ. 80 mA Width 45 mm Height 100 mm Depth 75 mm |  |
| 32 | S7-1200 | 6ES7 231-5PA30-OXB0 | SIMATIC S7-1200, Analog input, SB 1231RTD, 1 AI RTD, Pt100 and Pt1000 Rated value (DC) 24 V Current consumption, typ. 5 mA from backplane bus 5 V DC, typ. 20 mA Width 38 mm Height 62 mm Depth 21 mm | |
| 33 | S7-1200 | 6ES7 231-5QD30-0XB0 | "***Spare part*** SIMATIC S7-1200, Analog input, SM 1231 TC, 4 AI thermocouples Rated value (DC) 24 V Current consumption, typ. 40 Ma from backplane bus 5 V DC, typ. 80 mA Width 45 mm Height 100 mm Depth 75 mm " |  |
| 34 | S7-1200 | 6ES7 231-5QA30-OXB0 | SIMATIC S7-1200, Analog input, SB 1231 TC, 1 AI thermocouples Type J or K Rated value (DC) 24 V Current consumption, typ. 5 mAfrom backplane bus 5 V DC, typ. 20 mA Width 38 mm Height 62 mm Depth 21 mm | |
| 35 | S7-1200 | 6ES7 232-4HA30-0XB0 | "SIMATIC S7-1200, Analog output, SB 1232, 1 AO, +/-10 V DC (12 bit resol.) or 0-20mA (11 bit resol.) from backplane bus 5 V DC, typ. 15 mA Supply current, max. 25 mA Width 38 mm Height 62 mm Depth 21 mm" |  |
| 36 | S7-1200 | 6ES7 232-4HB32-0XB0 | SIMATIC S7-1200, Analog output, SM 1232, 2 AO, +/-10 V, 14-bit resolution, or 0-20 mA/4-20 mA, 13-bit resolution Rated value (DC) 24 V Current consumption, typ. 45 mA from backplane bus 5 V DC, typ. 80 mA Width 45 mm Height 100 mm Depth 75 mm |  |
| 37 | S7-1200 | 6ES7 238-5XA32-0XB0 | SIMATIC S7-1200, Analog input, SM 1238 Energy Meter 480 V AC, power measurement module for data acquisition in 1- and 3-phase supply systems (TN, TT) up to 480 V AC; Current range: 1 A, 5A; acquisition of voltage, current, phase angles, power, energy values, frequencies; Channel diagnostics |  |
| 38 | "KTP1200 Basic" | 6AV2 123-2MA03-0AX0 | SIMATIC HMI, KTP1200 Basic DP, Basic Panel, Key/touch operation, 12" TFT display, 65536 colors, PROFIBUS interface, configurable as of WinCC Basic V13/ STEP 7 Basic V13, contains open-source software, which is provided free of charge see enclosed CD |  |
| 39 | " KTP900 Basic" | "6AV2 123-2JB03-0AX0 " | SIMATIC HMI, KTP900 Basic, Basic Panel, Key/touch operation, 9" TFT display, 65536 colors, PROFINET interface, configurable from WinCC Basic V13/ STEP 7 Basic V13, contains open-source software, which is provided free of charge see enclosed CD |  |
| 40 | " KTP700 Basic" | 6AV2 123-2GA03-0AX0 | SIMATIC HMI, DP700 Basic, Basic Panel, Key/touch operation, 7" TFT display, 65536 colors, PROFINET interface, configurable from WinCC Basic V13/ STEP 7 Basic V13, contains open-source software, which is provided free of charge see enclosed CD |  |
| 41 | TP700 | 6AV2124-0GC01-0AX0 | SIMATIC HMI TP700 Comfort, Comfort Panel, touch operation, 7" widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0, configurable from WinCC Comfort V11 |  |
| 42 | " KTP400 Basic" | 6AV2 123-2DB03-0AX0 | SIMATIC HMI, KTP400 Basic, Basic Panel, Key/touch operation, 4" TFT display, 65536 colors, PROFINET interface, configurable from WinCC Basic V13/ STEP 7 Basic V13, contains open-source software, which is provided free of charge see enclosed CD |  |

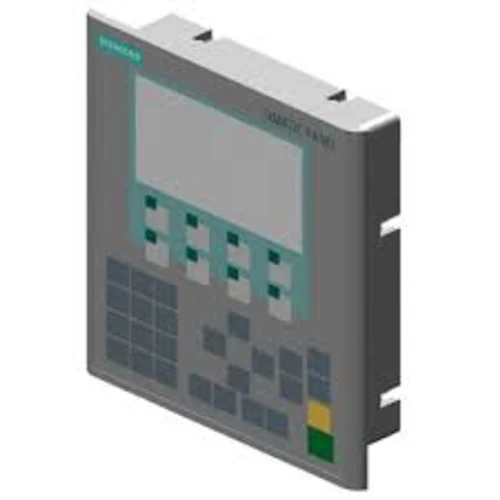

| 43 | KP300 | 6AV6647-0AH11-3AX1 | SIMATIC HMI KP300 Basic mono PN, Basic Panel, key operation, 3" FSTN LCD display, black/white, PROFINET interface, configurable from WinCC Basic V11/ STEP 7 Basic V11, contains open-source software, which is provided free of charge see enclosed CD |  |
| 44 | "TP 177 micro" | 6AV6640-0CA11-0AX1 | *** Spare part *** SIMATIC Touch Panel TP 177micro for SIMATIC S7-200 5.7" blue mode STN display configurable from WinCC flexible 2004 Micro HSP Contains open source software which is provided free of charge. See enclosed CD |  |
| 45 | S7-1200 | 6ES7 241-1CH32-0XB0 | "SIMATIC S7-1200, Communication module CM 1241, RS422/485, 9-pole D-sub (socket) supports Freeport Rated value (DC) 24 V permissible range, lower limit (DC) 20.4 V Width 30 mm Height 100 mm Depth 75 mm " |  |
| 46 | "SITOP PSU100S" | 6EP1334-2BA20 | SITOP PSU100S 24 V/10 A stabilized power supply input: 120/230 V AC output: 24 V DC/10 A type of the power supply network 1-phase AC supply voltage 120 V/230 V width × height × depth of the enclosure 70 × 120 |  |
| 47 | "SITOP PSU100S" | 6EP1333-2BA20 | SITOP PSU100S 24 V/5 A stabilized power supply input: 120/230 V AC output: 24 V DC/5 A type of the power supply network 1-phase AC supply voltage 120 V/230 V width × height × depth of the enclosure 50 × 120 |  |
| 48 | DR-120 | NDR-120-24 | "AC-DC Industrial DIN rail power supply; Output 24Vdc at 5A; metal case; DR-120-24 is succeeded by NDR-120-24.utput Power: 120 W Output Voltage: 24 VDC Output Current: 5A Input Voltage: 176 – 264/88 – 132 VACIP Rating: No IP assigned Width:65.5mmHeight125.2mmDepth:100mm" |  |
| 49 | S7-1X00 | 6ES7 954-8LE03-0AA0 | "SIMATIC S7, MEMORY CARD FOR S7-1X00 CPU/SINAMICS, 3,3 V FLASH, 12 MBYTE Type of memory Flash-EPROMFlash Yes Memory size 12 Mbyte Number of write/delete operations, min. 500 000" |  |
| 50 | 6GK1901-1BB10-2AA0 | Industrial Ethernet FastConnect RJ45 plug 180 2x 2, RJ45 plug-in connector (10/100 Mbit/s) with rugged metal enclosure and FC connection system, for IE FC TP cable 2x 2; 180° cable outlet 1 pack = 1 unit. |  | |
| 51 | S7-1200 | 6GK1901-1BB10-2AA0 | Industrial Ethernet FastConnect RJ45 plug 180 2x 2, RJ45 plug-in connector (10/100 Mbit/s) with rugged metal enclosure and FC connection system, for IE FC TP cable 2x 2; 180° cable outlet 1 pack = 1 unit. | |
| 52 | S7-1200 | 6GK5005-0BA10-1AA3 | SCALANCE X005, IE Entry Level Switch unmanaged 5x 10/100 Mbit/s RJ45 ports, LED diagnostics, IP30, 24 V DC power supply, PROFINET-compliant securing collars, Extended temperature range -40 °C...+75 °C, Manual available as a download |  |
| 53 | S7-1200 | 6GK5005-0BA00-1AB2 | SCALANCE XB005 unmanaged Industrial Ethernet Switch for 10/100 Mbit/s; for setting up small star and line topologies; LED diagnostics, IP20, 24 V AC/DC power supply, with 5x 10/100 Mbit/s twisted pair ports with RJ45 sockets; Manual available as a download | |
| 54 | S7-1200 | 7MH4960-2AA01 | SIWAREX WP231 calibratable weighing electronic (1 channel) for strain gauge load cells / full bridges (1-4 mV/V) for SIMATIC S7-1200 or stand alone, RS485 and Ethernet-Interface, onboard I/O: 4 DI / 4 DO, 1 AO (0/4...20mA), attention: |  |
| 55 | S7-12XX | 6ES7 972-0BA52-0XA0 | PROFIBUS bus connector, RS 485, Fast Connect, without programming port, 90° SIMATIC DP, Connection plug for PROFIBUS up to 12 Mbit/s 90° cable outlet, Insulation displacement method FastConnect, without PG socket 15.8x 59x 35.6 mm (BxHxD) | |
| 56 | S7-1200 | 6ES7 297-0AX30-0XA0 | SIMATIC S7-1200, Battery Board BB 1297 for long-term buffering of the real time clock, plug-in in the signal board receptacle of the S7-12XX (FW3.0 or higher); Battery (CR1025) not included in scope of delivery |  |
| 57 | S7-1200 | 7MH5001-0AA20 | Junction box SIWAREX JB; die-cast aluminum quality to connect in parallel up to 4 load cells in 4-wire or 6-wire system; degree of protection: IP66; dimensions: 100 x 160 x 81 mm |  |
| 58 | S7-1200 | 8WD44205AB | Continuous light element, with integrated LED, red, 24 V DC, Diameter 70 mm |  |
| 59 | S7-1200 | 8WD44205AD | Continuous light element, with integrated LED, yellow, 24 V DC, Diameter 70 mm |  |
| 60 | S7-1200 | 8WD44205AC | Continuous light element, with integrated LED, green, 24 V DC, Diameter 70 mm |  |
Different Type Product List
| S/N | Series | Part No | Technical Specification | Product Picture |
|---|---|---|---|---|

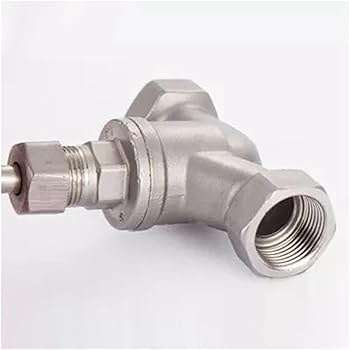

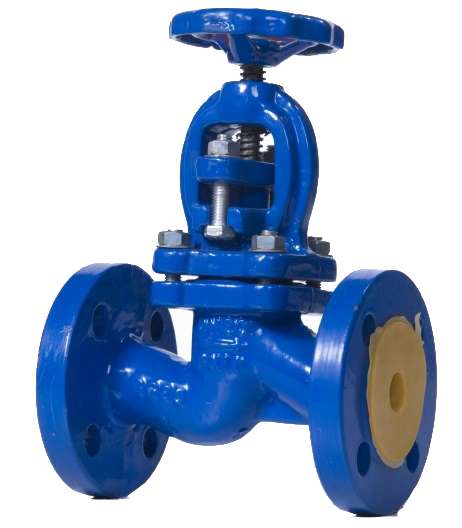

| 1 | VALVE | DN25/PN25 | "1/ 24/D T4/T=135DRGEE" | < |

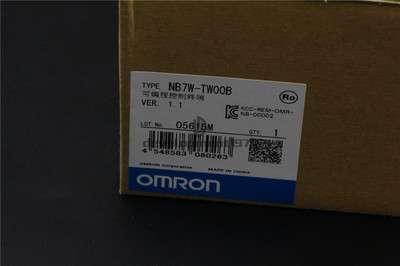

| 2 | 06Z18 | 548583 080263 | -- |  |
| 3 | -- | HITTER | --High Speed Fan |
All Cable Product List
| S/N | Part No | Technical Specification | Product Picture |
|---|---|---|---|

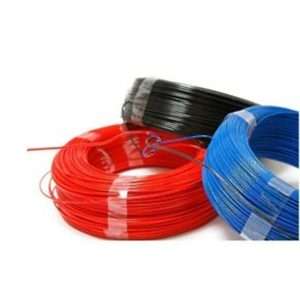

| 1 | 0.40RM | Single Core Cable; Cable Type: BYA-FR; Single Core; Non-Sheathed; FR-PVC (SKIN COATED); INSULATED |  |
| 2 | 2.5RM | Single Core Cable; Cable Type: BYA-FR; Single Core; Non-Sheathed; FR-PVC (SKIN COATED); INSULATED |  |
| 3 | 4RM | Single Core Cable; Cable Type: BYA-FR; Single Core; Non-Sheathed; FR-PVC (SKIN COATED); INSULATED |  |
| 4 | 6RM | Single Core Cable; Cable Type: BYA-FR; Single Core; Non-Sheathed; FR-PVC (SKIN COATED); INSULATED |  |
| 5 | MODBUS CABEL | "Brand: Siemens Type: Profibus Cable Use for VFD Measurement of Price Per/Meter " |  |
| 6 | 6xv1870-2b | " Industrial Ethernet FC TP flexible cable, GP 2x2 (PROFINET Type B), TP installation cable with flexible cores, PROFINET type B, 4-core, shielded, CAT 5e, sold by the meter, delivery unit max. 2500 m minimum order quantity 20 m " |  |
All VFD Product List
| S/N | Brand & Origin | Series | Part No | Technical Specification | Product Picture |
|---|---|---|---|---|---|
| 1 | SIEMENS | SINAMICS V20 | 6SL3210-5BE25-5UV0 | SINAMICS V20 380-480 V 3 AC -15/+10% 47-63Hz rated power 5.5 kW with 150% overload for 60 sec. unfiltered I/O: 4 DI, 2 DO,2 AI, 1 AQ fieldbus: USS/MODBUS RTU with built-in BOP protection: IP20/ UL open size: C 184x182x169 (WxHxD |  |
| 2 | SIEMENS | SINAMICS V20 | 6SL3210-5BE25-5UV0 | SINAMICS V20 380-480 V 3 AC -15/+10% 47-63Hz rated power 5.5 kW with 150% overload for 60 sec. unfiltered I/O: 4 DI, 2 DO,2 AI, 1 AQ fieldbus: USS/MODBUS RTU with built-in BOP protection: IP20/ UL open size: C 184x182x169 (WxHxD | |
| 3 | SIEMENS | MICROMAS-TER 420 | 6SE6420-2UC17-5AA1 | **spare part** MICROMASTER 420 without filter 200-240 V 1/3 AC+10/-10% 47-63 Hz constant torque 0.75 kW overload 150% for 60 s square-law torque 0.75 kW 173x 73x 149 (HxWxD) degree of protection IP20 ambient temperature -10+50 °C without AOP/BOP |  |

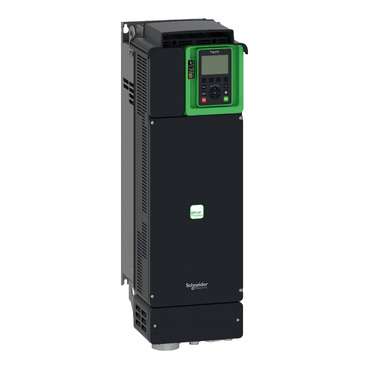

| 4 | Schneider | ATV-630 | ATV630D30N4 | This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 380V to 480V AC. |  |
All Switchgear Product List
| S/N | Brand & Origin | Series | Port No | Technical Specification | Product Picture |
|---|---|---|---|---|---|
| 1 | SIEMENS | SIEMENSSTR | 5SL63327RC | "MCB 32 A 3-pole C characteristic 7.5 Ka type of voltage of the operating voltage AC type of voltage Use only in alternating current or direct current circuits. Mixed use is not permitted.height 90 mm width 54 mm depth 76 mm " |  |
| 2 | SIEMENS | SIEMENSSTR | 5SY62 | "Miniature circuit breaker 400 V 6kA, 2-pole, C4, 25A, D=70 mm of voltage of the operating voltage AC type of voltage Use only in alternating current or direct current circuits. Mixed use is not permitted.height 90 mm width 36 mm depth 76 mm" |  |
| 3 | SIEMENS | SIEMENSSTR | 5SL41327RC | "Miniature circuit breaker 240/415 V 10kA, 1-pole, C, 32 A type of voltage of the operating voltage AC type of voltage Use only in alternating current or direct current circuits. Mixed use is not permitted.height 90 mm width 18 mm depth 76 mm" |  |
| 4 | SIEMENS | SIEMENSSTR | 5SL41327RC | "Miniature circuit breaker 240/415 V 10kA, 1-pole, C, 06 A type of voltage of the operating voltage AC type of voltage Use only in alternating current or direct current circuits. Mixed use is not permitted.height 90 mm width 18 mm depth 76 mm" | |
| 5 | SIEMENS | SIEMENSSTR | 3TF32 00-0A | magnetic Contactor, 16 A AC-3, 230 V type of voltage Use only in alternating current or direct current circuits. Mixed use is not permitted.height 90 mm width 45 mm depth 76 mm |  |
| 6 | SCHNEIDER | Compact | NSX400 | "Product Name ComPact NSX Range Of Product ComPact NSX400...630 Device Short Name VigiCompact NSX400F Product Or Component Type Earth leakage circuit breaker Device Application DistributionNumber Of Poles 3P Protected Poles Description 3t " |  |

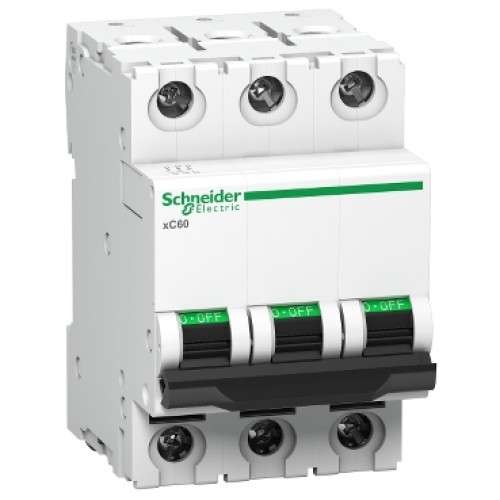

| 7 | SCHNEIDER | xC60 | A9N3P32C | Product Or Component Type Miniature circuit-breaker Device Short Name xC60 Poles Description 3P Number Of Protected Poles 3 [In] Rated Current 32 A Network Type AC DC Trip Unit Technology Thermal-magnetic |  |
| 8 | SCHNEIDER | xC60 | A9N3P20C | Product Or Component Type Miniature circuit-breaker Device Short Name xC60 Poles Description 3P Number Of Protected Poles 3 [In] Rated Current 20 A Network Type AC DC Trip Unit Technology Thermal-magnetic |  |
| 9 | SCHNEIDER | xC60 | A9N3P16C | Product Or Component Type Miniature circuit-breaker Device Short Name xC60 Poles Description 3P Number Of Protected Poles 3 [In] Rated Current 16 A Network Type AC DC Trip Unit Technology Thermal-magnetic |  |
| 10 | SCHNEIDER | GV2M | GV2ME08 | "Product Or Component Type Motor circuit breaker Device Motor circuit breaker, TeSys GV2, 3P, 2.5-4 A, thermal magnetic, screw clamp terminalsmagnetic Poles Description 3P Network Type AC" |  |
| 11 | SCHNEIDER | GV2M | GV2ME14 | "Product Or Component Type Motor circuit breaker Device Motor circuit breaker, TeSys GV2, 3P,6-14 A, thermal magnetic, screw clamp terminalsmagnetic Poles Description 3P Network Type AC" | |

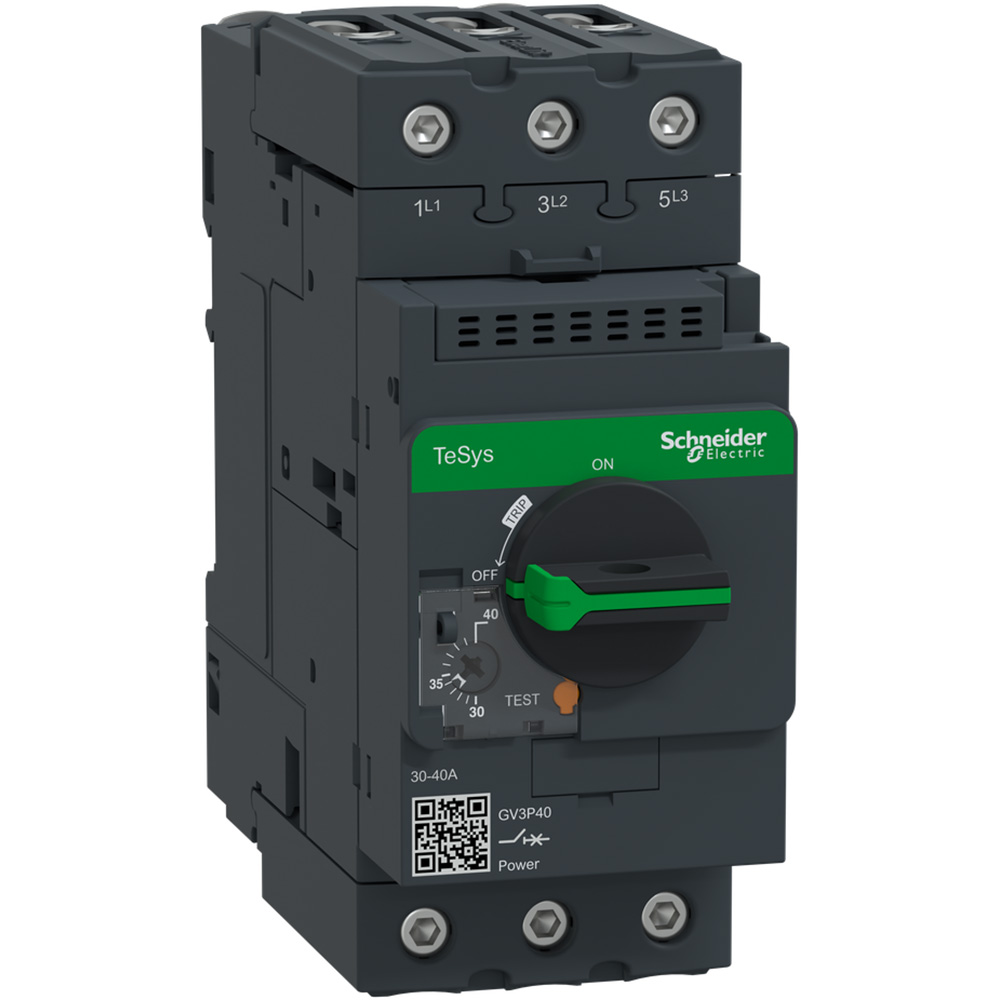

| 12 | SCHNEIDER | GV3 | GV3P40 | "Product Or Component Type Motor circuit breaker Device Motor circuit breaker, TeSys GV2, 3P,30-40 A, thermal magnetic, screw clamp terminalsmagnetic Poles Description 3P Network Type AC" | |

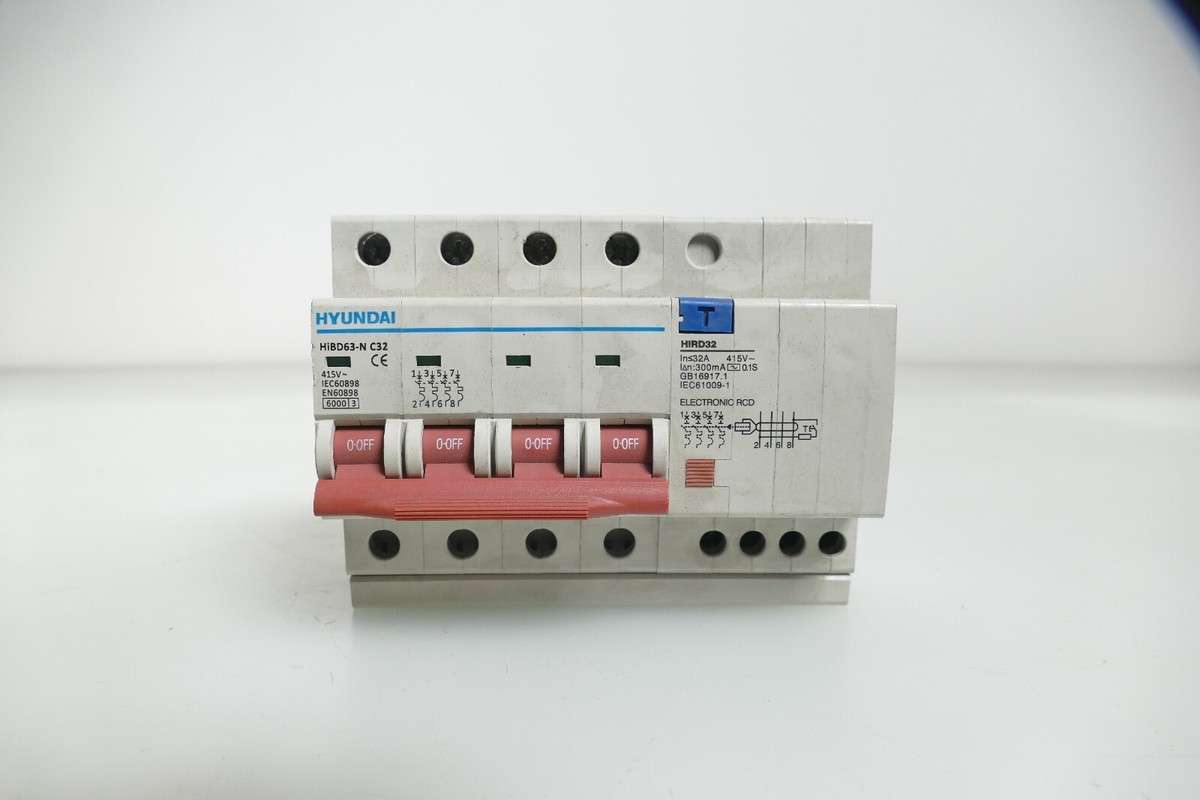

| 13 | HYUNDAI | HIBD63 | N C32 | miniature circuit breaker HYVNDAI type HIBD63-N C32 240V/415V High standard material goods fire resistance | |
| 14 | HYUNDAI | HIBD64 | N C10 | miniature circuit breaker HYVNDAI type HIBD63-N C10 240V/415V High standard material goods fire resistance | |
| 15 | HYUNDAI | HMMS-32K | 6-10A | "HMMS-32K motor circuit breakers have overload release, short-circuit release and high breaking capacity. Wide range of adjustment from 6 to 10A allows you to control and protect motors up to at 400V. Produced according to EN 60947-2 standard" | |
| 16 | LS | BKN-C | C50 | "Ls Bkn C 50 Circuit Breaker Ls Industrial SystemsLsis BknC 50 400V~ 3 Iec60898 R100425-c50 Korea Weight: 320 Gm" | |
| 17 | CHNT | NB1L | C25 | " 1P+N, C Curve, 30mA, 25A RCBO Residual Current Operated Circuit Breaker with Over-Current Protection, Magnetic, 25 A, C Curve, 30 mA, 36 mm Length, 1+N Pole. " | |
| 18 | PHONIX | Phoenix Contact ; 2966265 Phoenix Contact - Relay Module - PLC-RSC- 24DC | |||
| 19 | OMRON | G9SE | G9SE-201 | Safety Relay Unit power supply 24v dc 2no 2nc |
